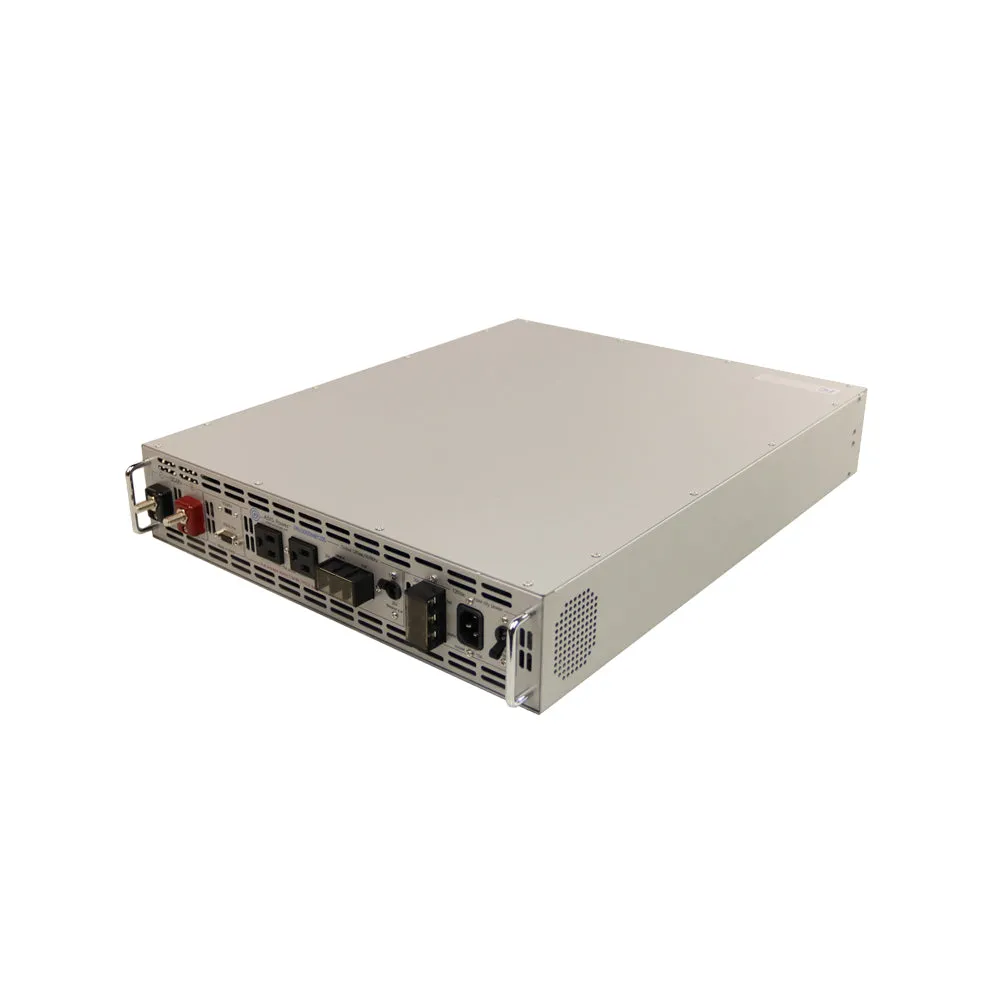

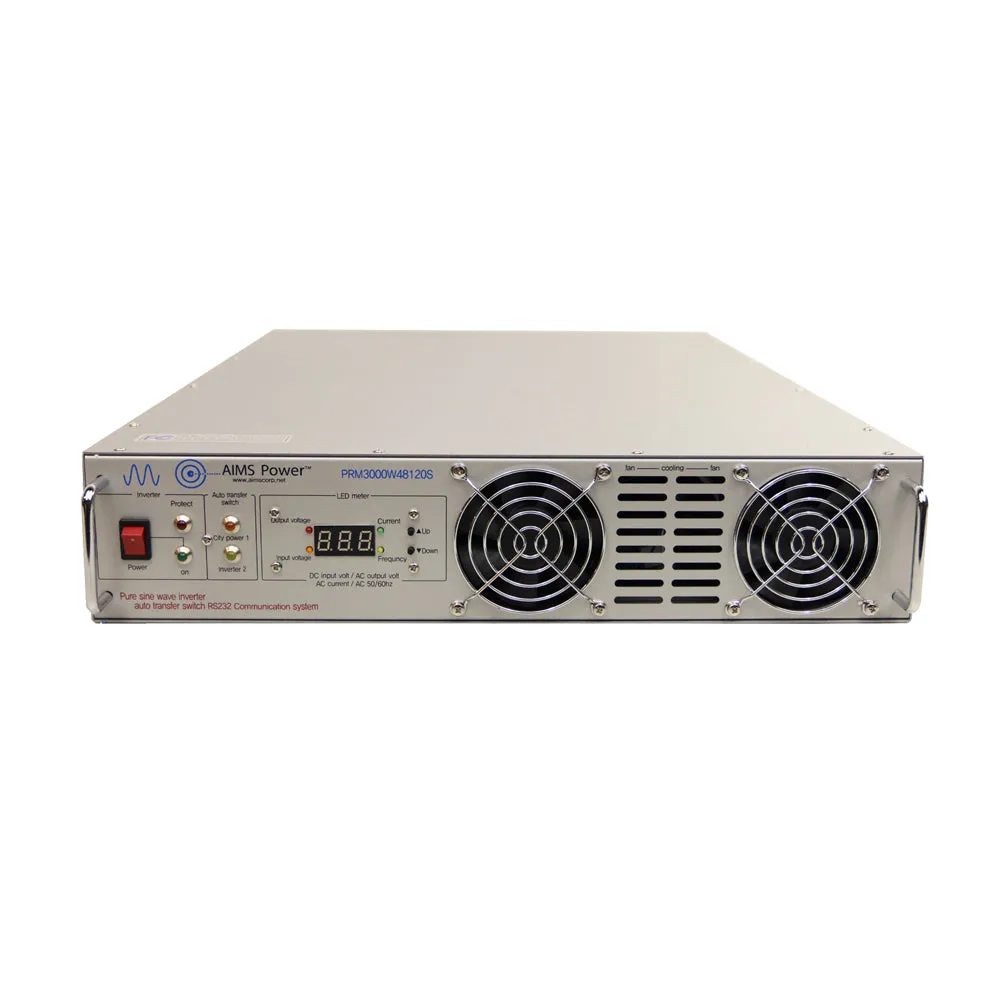

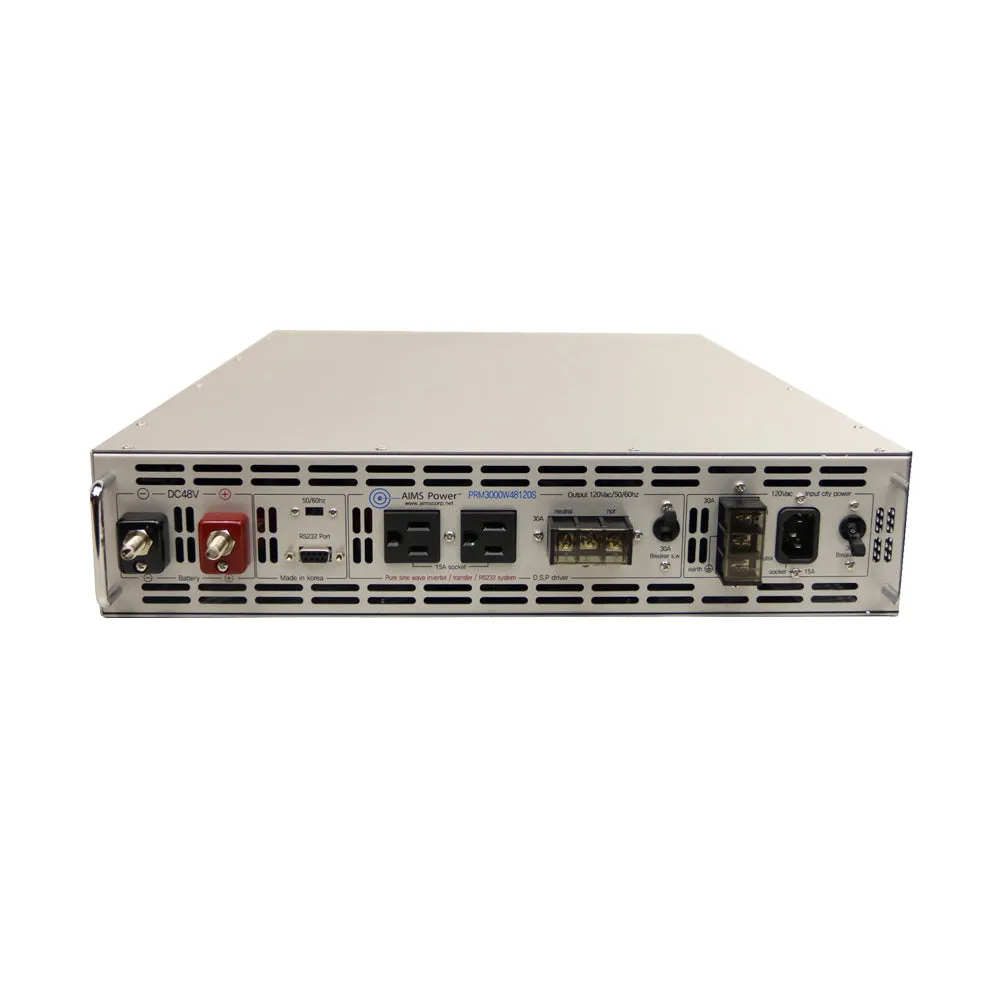

Secure uninterrupted power for your essential devices with our 2U Rackmount Inverter, now available at Appliance Guys. Perfect for a range of applications, this inverter delivers a solid 3000W of continuous pure sine power at a dependable 120Vac output. It ensures smooth power continuity with a built-in 34 Amp transfer switch that boasts a quick transfer time of less than 20ms. With an automatic bypass for city/utility power and real-time monitoring via an RS232 communication port, this inverter is engineered for both efficiency and dependability.

• Continuous Output Power: 3000 Watts
• Surge Power Capability: 6000 Watts
• DC Input/Operating Voltage: 21.0 to 30.0 Volts
• Output Voltage: 120 Volts AC
• Output Waveform: Pure sine wave
• Output Frequency: 60 Hz
• Low Battery Voltage Shutdown: 20.0 Volts
• High Battery Voltage Shutdown: 31.7 Volts
• High Battery Voltage Power Return: 30.0 Volts
• Low Battery Voltage Recovery: 22.4 Volts
• No-Load Power Consumption: Fan Off 0.60A DC – Fan On 1.5A DC
• Frequency: 60Hz
• Efficiency: 91%

Protection:

• Over-Temperature Protection Low: -4 degrees F ± 5 degrees F
• Over-Temperature Protection High: 172 degrees F ± 5 degrees F
• Operating Temperature Recovery: 136 degrees F (automatic shutdown)
• High Input Voltage Protection: 31.3V
• Low Input Voltage Shutdown: 20V
• AC Output and Bypass Protected: 34A Breaker

Additional Specifications:

• Transfer Switch Time: 16-18 msec (program controlled)
• AC Output Socket Type: Dual Type 2 -3 prong
• RS232 Communication Port
• FCC Class B: F690501/RF-EMC000376(H)

• Length: 20.9 inches
• Width: 16.5 inches
• Height: 3.5 inches
• Unit Weight: 27.6 lbs
